How to Back Up Barracuda NG Firewall Configuration file

How to back up and restore
Barracuda NG Firewall configuration file

To back up the Barracuda NG Firewall - >

1. Log into the Barracuda NG Firewall.

2. Go to the Configuration Section

3. Click on Configuration Tree.

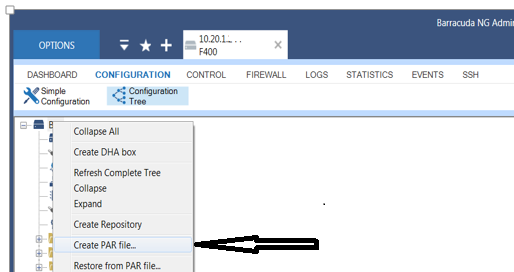

4. Right-click Box and select Create PAR file and Save file to a suitable location...

To understand this - See below :-

back up and restore Barracuda NG Firewall configuration file

back up and restore Barracuda NG Firewall configuration file

To Restore the Barracuda NG Firewall Config from backup file -

1. Log into the Barracuda NG Firewall

2. Go to the Configuration Section

3. Click on Configuration Tree

4. Right-click Box and select Restore from PAR file. Select the required PAR file.

5. Click Activate.

6. Go to the Control > Box page.

7. In the left navigation pane, expand Operating System and click Firmware Restart. Click Yes to confirm that you want to restart the subsystem.

8. Expand Network and click Activate new network configuration.

9. Select one of the following network configuration activation modes:

  a) If the new management IP address and management port are different from the ones currently configured on the appliance, click Force.

  b) If you are continuing to use the same management IP address and management port, click Failsafe.
